Angstrom-Dep ALD systems：Modulerized & Customerized Products

STANDARD ALD SYSTEMS & TECHNICAL SPECIFICATIONS

Angstrom-dep® systems have three base configurations：

• Single wafer ALD or single power ALD system, Angstrom-dep I；

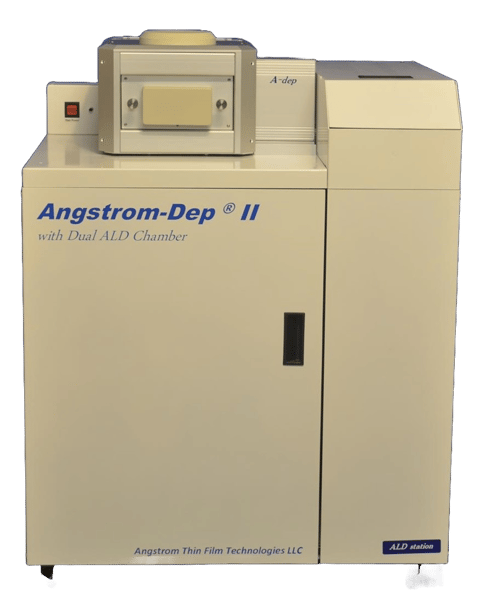

• Both wafer and powder ALD dural ALD system, Angstrom-dep II；

• Both wafer and powder ALD with plasma function system, Angstrom-dep III；

• Modualerized design, customers can configurate depending on their needs or upgrade existing Angstrom-dep system.

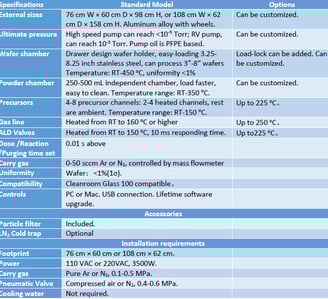

Technical Specifications

• More than 10 years ALD experiences.

• Specialized not only thermal ALD, but also plasma assisted ALD, porous material ALD and powder ALD.

• Batched powder ALD. Powder are easily collected. ALD container are easily cleaned. Avoid contaminations among different powder samples.

• Can use corrosive precursors to do low temperature ALD, which is important for organic polymer ALD.

• Modularized design, easy to upgrade and maintenance. It is easy to add plasma function, powder ALD module, and ozone function on existing wafer ALD system.

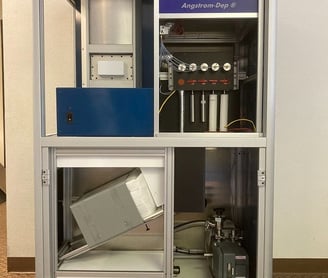

• Drawer-design wafer holder and cabinet-type precursor department are very convenient to change wafer and precursors.

• Focused ALD system functions, reliabilities and practicality.

• Special ALD gas flow processes and ALD chamber designs based on years ALD experiences.

• System has automatic self-cleaning function, can reduce depositions on the pipelines and clogging in the worst scenario.

• Computer control operating program. Experiment parameters are saved for future references or uses. .

• Modualerized design.

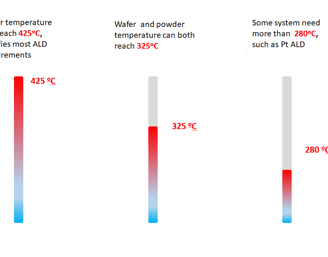

• Independent wafer chamber (RT-450°C).

• Precursor compartment (with temperature control).

• Independent powder chamber (RT-350°C).

• Customerized configuration or upgrade.

• Superior powder ALD functions.

• The powder chamber equipped with perturbation system.

• Evenly dispersed powder assures homogenous ALS.

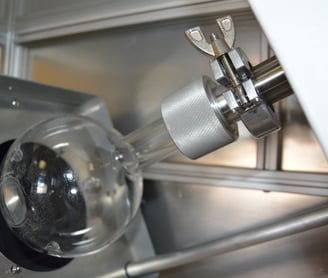

• Powder bottle removal and cleaning are quick and convenient.

• Standardized powder bottle, replace bottles for different powder samples to avoid contamination.

• Heated wafer stage, quick temperature responses.

• Single chamber structure, simple, convenient to operate and maintein.

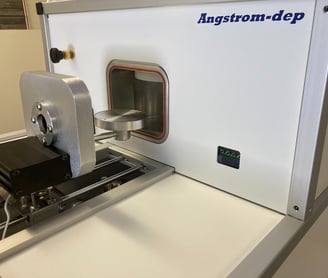

• Drawer-type sample holder. Changing wafers by pulling out the door.

• 3” and 8” sample holders are available.

• Powder chamber is independent from wafer chamber, to avoid wafer contaminations by powders, especially nanopowders.

• Add plasma function in wafer chamber.

• Add ozone function in one of precursor lines
